- Control panel for thruster, S-Link™, dual joystick, hold function, color LCD touch
Hallintapaneelit

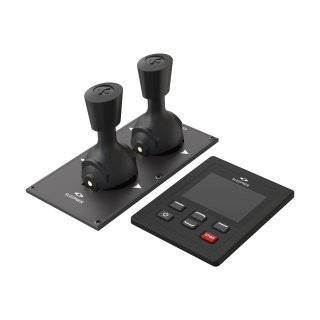

Control panel for thruster, S-Link™, dual joystick, hold function, color LCD touch
for variable speed thrusters
Tuotekoodi: PJC422-PVREL
PJC422 dubbel joystick med extern interaktiv färgskärm.
- Bakbelyst touch-LCD med omedelbar återkoppling
- Inbyggt WiFi-modul
- Inbyggd larmsummer
- Plug & Play-kablar, vattentäta och kompakta kontakter
- Dedikerad kontakt för IO-signaler
- Kan kombinera DC/HYD/AC
| Ideal vessel integration | Arvo |
|---|---|
| Typical vessel class | Moottorivene, Työvene, Purjevene |
-

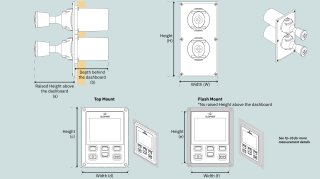

Cut Out Template, PJC422-PVREL
Cut Out TemplatesEnglantipdf -
STP.file PJC422-PVREL - dual joystick & S-link touch screen simplified
CAD FileEnglantistp -
STP.fil TP-35 Flush mount
CAD FileEnglantistp -
STP.fil TP-35 Top mount
CAD FileEnglantistp -
Service and Support Manuals, Fault Codes
Service/Support ManualEnglantipdf -
Installation and User Manual - PJC421, PJC422, TP-35
Installation Manual, User ManualEnglantipdf -
PVREL Joystick Dual
CAD FileEnglantistp -
PDF.file TP-35 Touch Panel - metadata
Technical drawingEnglantipdf -
DWG.file TP-35 Touch Panel - metadata
Technical drawingEnglantidwg -
Declaration of conformity (DoC), CE - Thruster Proportional Joystick Control PJC4xx 20.04.21
Conformity CertificateEnglantipdf
Control panel for thruster, S-Link™, dual joystick, hold function, color LCD touch
Guide till navigering av reservdelar
Nedan ser du toppnivå av reservdelsenheter tillgängliga för dig. Om du önskar en komponent inom den presenterade enheten, klicka på namnetiketten under bilden för att komma till en detaljerad reservdelslista för den enheten. Om inga ytterligare reservdelar finns tillgängliga betyder det att den aktuella enheten måste köpas som en helhet på grund av service- eller installationskrav.
Y-connector
Joystick cable

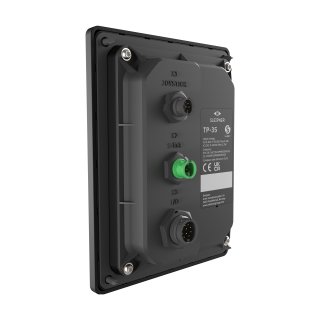

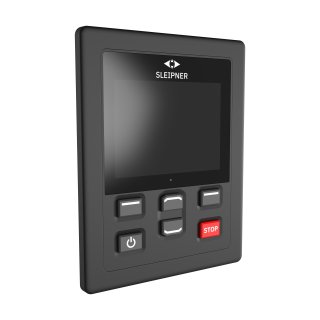

1 TP-35 Touch Panel
Protective cover
Cover frame
Screw
Panel
Gasket
Joystick Cable

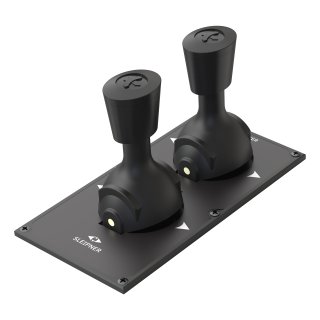

2 PVREL Joystick Dual, assembly
Joystick only
Cover plate dual
Label dual
Screw
Countersunk screw
Washer
Spring washer
Hex nut
Back lid
Joystick brakeout cabel
