Muut
Retract mechanical
Ø250mm TC 24V
Tuotekoodi: 13 0650
0,00 €
(Ehdottu myyntihinta)
| Sparepart for | Arvo |
|---|---|
| Main products > Thrusters > DC > SR_SRV_SRL | SRV210/250TCOBS SRV210/250TC SRV170/250TC |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEnglantipdf
Retract mechanical
SM104776B
13 0650
03.09.2025
Guide till navigering av reservdelar
Nedan ser du toppnivå av reservdelsenheter tillgängliga för dig. Om du önskar en komponent inom den presenterade enheten, klicka på namnetiketten under bilden för att komma till en detaljerad reservdelslista för den enheten. Om inga ytterligare reservdelar finns tillgängliga betyder det att den aktuella enheten måste köpas som en helhet på grund av service- eller installationskrav.
+
-
⇔
PHOTO NOT AVAILABLE
2
Cable actuator
Tuotekoodi: 150050
Määrä 2
PHOTO NOT AVAILABLE
3
Cylinder head cap screw
Määrä 4
M4x12 Unbraco
PHOTO NOT AVAILABLE
5
Sensor cable SR
Tuotekoodi: 150055
Määrä 1
PHOTO NOT AVAILABLE
7
Hex lock nut
Määrä 1
DIN 985 - M4 x 0,7 A4
PHOTO NOT AVAILABLE
8
Hex socket set screw flat point
Määrä 1
DIN 913 - M4 x 20 A4
PHOTO NOT AVAILABLE
9
Hex socket flat countersunk head screw
Määrä 2
DIN 7991 - M4x30 A4

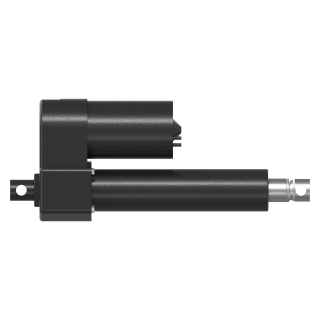

1 Actuator kit 24 v Retract 185-250mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Locking bolt
Tuotekoodi: 140003
Määrä 1
PHOTO NOT AVAILABLE
3
Split pin
Määrä 2
ISO 1234 - 3,2 x 20 A4
PHOTO NOT AVAILABLE
5
Flat washer without chamfer
Määrä 1
DIN 125 - A 13 A4
PHOTO NOT AVAILABLE
6
Grommet kit
Tuotekoodi: SM167587
Määrä 1
2 Adapter water proof SRV
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Adaptor for seals SRV sensor
Tuotekoodi: SM-131070
Määrä 1
PHOTO NOT AVAILABLE
2
O-ring Ø14x3mm
Määrä 1
--
PHOTO NOT AVAILABLE
3
Composite shaft for SRV sensor
Tuotekoodi: SM-131071
Määrä 1
PHOTO NOT AVAILABLE
4
O-ring Ø18x3mm
Määrä 1
--
PHOTO NOT AVAILABLE
6
DIN 125 - A 4,3
Määrä 2
Flat Washer
PHOTO NOT AVAILABLE
7
ISO 7045 - M4 x 40
Määrä 2
Screw
PHOTO NOT AVAILABLE
8
ISO 7045 - M4 x 55
Määrä 2
Screw

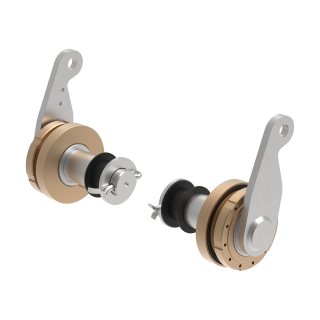

3 Shaft kit horizontal SRV130..210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Stuffing box
Tuotekoodi: SM-123053
Määrä 2
PHOTO NOT AVAILABLE
2

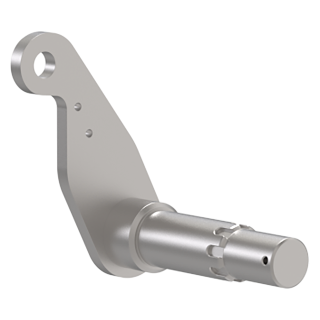

Lifting arm complete PS
Tuotekoodi: 140027
Määrä 1
PHOTO NOT AVAILABLE
3
Lock nut
Määrä 2
M64
PHOTO NOT AVAILABLE
4
O-ring
Määrä 2
DIN 3771 - 72,62 x 3,53
PHOTO NOT AVAILABLE
5
O-ring
Määrä 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
6
Thrust washer
Määrä 4
Ø48-Ø28 H=1,5
PHOTO NOT AVAILABLE
7
Flat washer without chamfer
Määrä 2
DIN 125 - A 29
PHOTO NOT AVAILABLE
8
Split pin
Määrä 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
9
Split pin
Määrä 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
10
Sleeve bearing
Tuotekoodi: 140019
Määrä 2
PHOTO NOT AVAILABLE
11
Wype Ring
Tuotekoodi: 140030
Määrä 2
PHOTO NOT AVAILABLE
12
Turn ring
Tuotekoodi: 6 2140
Määrä 2
PHOTO NOT AVAILABLE
13
Sleeve bearing
Tuotekoodi: 140060
Määrä 2
PHOTO NOT AVAILABLE
15
Split pin
Määrä 2
ISO 1234 - 3,2 x 20

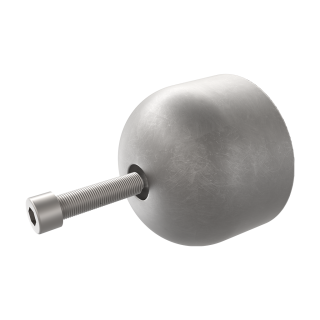

4 Anode kit, aluminium aloy (Al-Zn-In)
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Alu anode
Tuotekoodi: 10 9998
Määrä 1
PHOTO NOT AVAILABLE
2
Bolt
Määrä 1
DIN 912 - M6 x 30

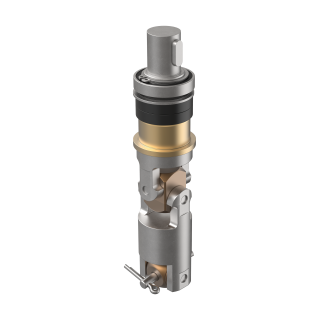

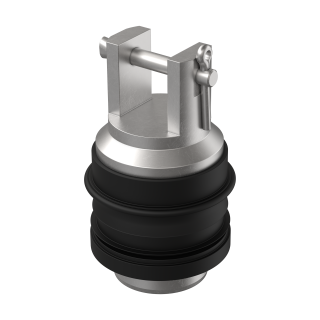

5 Retract drive shaft kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Retaining ring for shaft
Määrä 1
DIN 471 - 25 x 1,2
PHOTO NOT AVAILABLE
2
Deep groove ball bearings single row with two RS1 seals
Määrä 1
SKF 2RS1W 61805-2RS1
PHOTO NOT AVAILABLE
3
Spring Retaining Ring
Määrä 1
DIN 472 - 35 x 1,5
PHOTO NOT AVAILABLE
4
Rotary lip seal
Määrä 2
25 x 35 x 7
PHOTO NOT AVAILABLE
5
Bearing Sintered
Määrä 1
Ø25xØ32xL20
PHOTO NOT AVAILABLE
6
Parallel Key
Määrä 1
DIN 6885 - A 6 x 6 x 16
PHOTO NOT AVAILABLE
7
Flexible drive shaft
Määrä 1
250 mm
PHOTO NOT AVAILABLE
8
Locking pin
Määrä 1
Ø6 L45,5
PHOTO NOT AVAILABLE
9
Split Pin
Määrä 1
DIN EN ISO 1234 - 3,2x12

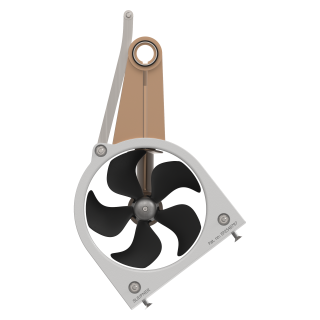

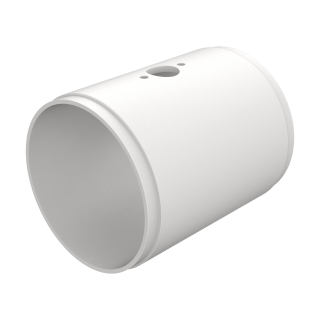

6 Tunnel kit retract Ø250mm TC, complete
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Thrust washer
Määrä 4
Ø10 x 18 x 1mm
PHOTO NOT AVAILABLE
3
Lifting rod
Tuotekoodi: 140007
Määrä 1
PHOTO NOT AVAILABLE
4
Hex head screws
Määrä 2
DIN 933 - M10 x 20
PHOTO NOT AVAILABLE
5
Sleeve bearing
Tuotekoodi: 140024
Määrä 2
PHOTO NOT AVAILABLE
6
Split pin
Määrä 2
ISO 1234 - 3,2 x 20
PHOTO NOT AVAILABLE
7
Split pin
Määrä 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
8
Wype Ring
Tuotekoodi: 140030
Määrä 2
PHOTO NOT AVAILABLE
9
O-ring
Määrä 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
10
Turn ring
Tuotekoodi: 6 2140
Määrä 2
PHOTO NOT AVAILABLE
14
Tunnel bracket
Tuotekoodi: 140010
Määrä 1

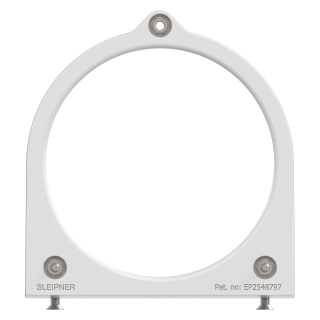

7 Retract ring support kit 250mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
3
DIN 934 - M10
Määrä 8
Hex nut
PHOTO NOT AVAILABLE
4
DIN 7991 - M10 x 70 A4
Määrä 4
Hex socket flat countersunk head screw
PHOTO NOT AVAILABLE
5
Sliding band
Tuotekoodi: 140151
Määrä 2
-1.png)
PHOTO NOT AVAILABLE
7
DIN 125 - A 10,5
Määrä 6
Flat washer without chamfer
PHOTO NOT AVAILABLE
8
DIN 985 - M10 x 1,5
Määrä 6
Hex lock nut
PHOTO NOT AVAILABLE
9
ISO 1234 - 3,2 x 20
Määrä 4
Split pin
8 Gearleg SRV170/210 replacement kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Mechanical sealing Ø35
Määrä 1
--
PHOTO NOT AVAILABLE
2
Bushing for drive pins
Määrä 1
--
PHOTO NOT AVAILABLE
3
DIN 3771 - 43,7 x 3,55 - NBR
Määrä 1
O-ring
9 Joint lower kit SRV130/170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Split pin
Määrä 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
2
Locking pin
Määrä 1
Ø6 L45,5
PHOTO NOT AVAILABLE
3
Drive shaft lower link
Määrä 1
PHOTO NOT AVAILABLE
4
Mechanical sealing Ø35
Määrä 1
PHOTO NOT AVAILABLE
5
Bushing for drive pins
Määrä 1

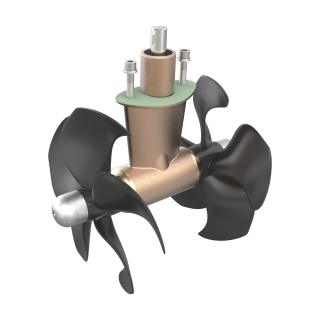

10 Gearleg SE170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
11 Gearleg SE170/210 w/out propeller
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Shaft seal
Määrä 1
DIN 3760 - AS - 22 x 40 x 7 - NBR - Carbon Steel
PHOTO NOT AVAILABLE
2
Bolt
Määrä 2
DIN 912 - M10 x 50
PHOTO NOT AVAILABLE
3
Lock washer
Määrä 2
DIN 128 - A10
PHOTO NOT AVAILABLE
4
Washer
Määrä 2
DIN 125 - A 10,5
PHOTO NOT AVAILABLE
6
Drive pin
Määrä 2
ISO 8734 - 8 x 37
PHOTO NOT AVAILABLE
7
Washer for propeller
Määrä 2
DIN 125 - A 17
PHOTO NOT AVAILABLE
8
Nut for propeller
Määrä 2
DIN 985 - M16x2
Vastuuvapauslauseke
Sleipner myöntää takuun vain toimitetuille alkuperäisille varaosille. Vastuu varaosien asennuksesta on yksin asentajalla. Älä yritä asentaa varaosia, ellet ole pätevä. Jos varaosa asennetaan väärin, Sliepner Group ei vastaa mistään vahingoista.
Asiakirjassa annetut tiedot olivat oikeita sen julkaisuhetkellä. Sleipner Group ei kuitenkaan voi ottaa vastuuta mahdollisista epätarkkuuksista tai puutteista. Jatkuvat tuoteparannukset voivat muuttaa tuotespesifikaatioita ilman ennakkoilmoitusta. Näin olleen Sleipner Group ei voi ottaa vastuuta tuotteen ja asiakirjan välistä mahdollisia eroista.
-
