- Retract mechanical SRV80/100 12V
Muut
Retract mechanical SRV80/100 12V
Tuotekoodi: 8 0651 12
Retract mechanical SRV80/100 12V
| Sparepart for | Arvo |
|---|---|
| Main products > Thrusters > DC > SR_SRV_SRL | SRV100/185T-12V SRV80/185T-12V SRVP100/185T-12V SRL100/185T-12V SRL80/185T-12V SRVP80/185T-12V SRLP100/185T-12V SRLP80/185T-12V |
Retract mechanical SRV80/100 12V
Guide till navigering av reservdelar
Nedan ser du toppnivå av reservdelsenheter tillgängliga för dig. Om du önskar en komponent inom den presenterade enheten, klicka på namnetiketten under bilden för att komma till en detaljerad reservdelslista för den enheten. Om inga ytterligare reservdelar finns tillgängliga betyder det att den aktuella enheten måste köpas som en helhet på grund av service- eller installationskrav.
1 Actuator kit 12v Retract 185-250mm
Grommet kit
Locking bolt
DIN 125 - A 13
DIN EN ISO 1234 - 3,2x20
2 Horizontal shaft SRV 185mm
DIN EN ISO 1234 - 3,2x20
Lifting arm complete BB
Packing box
O-ring
Locking nut
Sleeve bearing Ø32 ø28 L20
Seal kit horisontal shafts
Sliding washer
DIN EN ISO 1234 - 3,2x33
Thrust washer
DIN EN ISO 1234 - 3,2x12
Shaft for sensor
3 Adapter water proof SRV
Adaptor for seals SRV sensor
O-ring Ø14x3mm
Composite shaft for SRV sensor
O-ring Ø18x3mm
DIN 125 - A 4,3
ISO 7045 - M4 x 40
ISO 7045 - M4 x 55
4 Vertical shaft SRV 185mm
Bearing seal holder
Lock washer
O-ring
Lock nut
DIN 6912 - M6 x 25
DIN 125 - A 6,4
Tool for Ball bearing mounting
DIN 471 - 25x1,2
Rotary Lip Seal
SKF 2RS1W 61805-2RS1
Bushing Drive Shaft
DIN 6885 - A 5 x 5 x 16
Flexible drive shaft
DIN EN ISO 1234 - 3,2x12
Drive shaft lower link
Locking pin
Bushing SRV joint

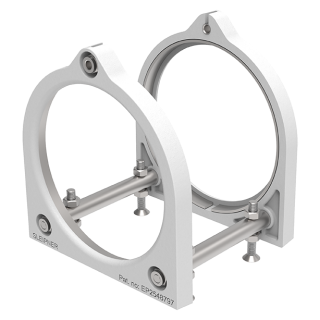

5 Tunnel kit for retract thruster SRV80/100
DIN EN ISO 1234 - 3,2x20
Twist ring
Ø6 x 45,5mm
Drive shaft lower link
DIN EN ISO 1234 - 3,2x12
Bushing SRV joint
Wype Ring Ø28
Turn ring
Tunnel
DIN 912 - M8 x 50
DIN 3771 - 32 x 1,5 - NBR
Sealing holder
Lifting plate
DIN 985 - M8x1,25
Locking pin
6 Anode, aluminium SE60/80/100
Anode, aluminium
Bolt - DIN 6912 - M6 x 16
7 Gearleg SE80/100 w/out propeller
DIN 912 - M8 x 55
DIN 127 - A 8
DIN 125 - A 8,4

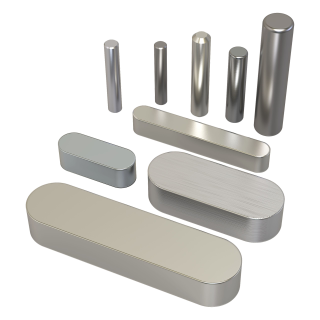

Drive pin
Propeller washer SS2324
DIN 985 - M12x1,75
Vastuuvapauslauseke
Sleipner myöntää takuun vain toimitetuille alkuperäisille varaosille. Vastuu varaosien asennuksesta on yksin asentajalla. Älä yritä asentaa varaosia, ellet ole pätevä. Jos varaosa asennetaan väärin, Sliepner Group ei vastaa mistään vahingoista.
Asiakirjassa annetut tiedot olivat oikeita sen julkaisuhetkellä. Sleipner Group ei kuitenkaan voi ottaa vastuuta mahdollisista epätarkkuuksista tai puutteista. Jatkuvat tuoteparannukset voivat muuttaa tuotespesifikaatioita ilman ennakkoilmoitusta. Näin olleen Sleipner Group ei voi ottaa vastuuta tuotteen ja asiakirjan välistä mahdollisia eroista.
-
