Helm pump, hydraulic steering 43cm³ with flange
Tuotekoodi: 72063
Rattpump för hydraulisk styrning med fläns
43 cm³

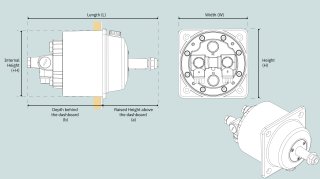

| Dimensions | Arvo |
|---|---|
| (K) Korkeus | 127mm / 5.00in |
| (+K) Lisäkorkeus | 121mm / 4.76in |
| (P) Pituus | 237mm / 9.33in |
| (L) Leveys | 127mm / 5.00in |
| (a) | 102mm / 4.02in |
| (b) | 135mm / 5.31in |
| Materiaali | Arvo |
|---|---|
| Product colour finish | Musta |
| Hydraulinen | Arvo |
|---|---|
| Non-return valve | Kyllä |
| Hydraulic steering | Arvo |
|---|---|
| Rudder rotations with cylinder 71090 | 5 |
| Pump displacement (ccm) | 43 |
| Helm pump type | with flange |
| Port dimensions BSP A/B | 1/4” |
| Rudder rotations with cylinder 71140 | 8,0 Recommended |
| Oil | Arvo |
|---|---|
| Oil type specifications | ISO VG15/DIN 51524-3 HVLP |
| Ideal vessel integration | Arvo |
|---|---|
| Typical vessel class | Työvene, Moottorivene, Purjevene |
| Product weight | Arvo |
|---|---|
| Net weight | 3.012kg / 6.64lbs |
-
